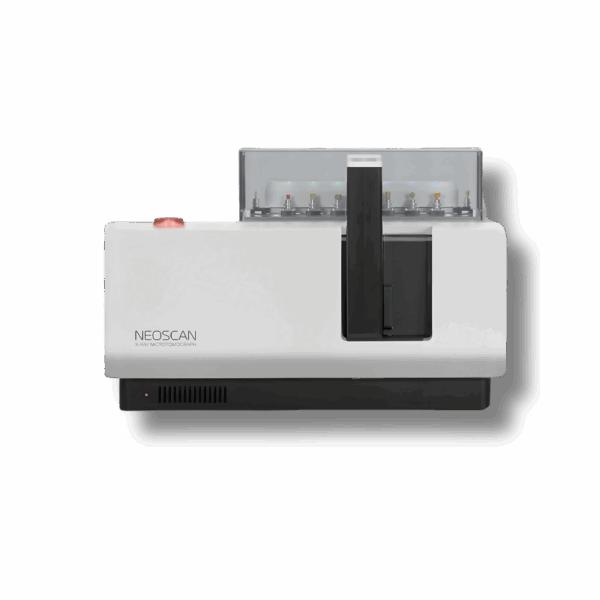

N60

The NeoScan N60 is a compact, accessible X-ray micro-CT scanner designed to bring high-quality, non-destructive 3D imaging within reach of any laboratory. Engineered by NeoScan to combine excellent performance with simplicity and affordability, the N60 delivers reliable micro-CT imaging for everyday research, quality control and educational applications — all in a lightweight, desk-top footprint.

With optimized resolution, a large-format camera and a powerful yet energy-efficient X-ray source, the NeoScan N60 is ideally suited for routine micro-CT analysis without the complexity and infrastructure demands of large-scale systems.

⭐ Key Features & Advantages

⚡ Compact Desktop Design

The NeoScan N60 features a small footprint (800 × 310 × 375 mm) and weighs only 45 kg, allowing installation directly on a laboratory desk — no special room, cooling infrastructure or reinforced flooring required.

🔌 True Plug-and-Play Operation

• Operates via a single USB 3 connection
• Compatible with most laptops, tablets and standard PCs
• Ideal for shared labs, mobile setups and teaching environments

🎯 Optimized Resolution for Daily Use

• True low-contrast 3D resolution: 8 μm
• Pixel size down to 3.8 μm at maximum magnification
• Excellent balance between resolution, scan time and ease of operation

Perfect for routine micro-CT tasks where speed, reliability and reproducibility matter.

🔦 Efficient X-Ray Source (up to 65 kV)

The integrated X-ray source supports voltages up to 65 kV, making the N60 suitable for a broad range of low-to-medium density materials:

• Polymers & plastics
• Geological samples
• Pharmaceutical tablets
• Bone & dental specimens

An automatic 4-position filter changer ensures optimized contrast for different sample types.

📷 Large Field-of-View X-Ray Camera

• Cooled 15 MP CMOS detector
• Camera field of view: 22 × 13 mm
• Large imaging area without compromising spatial resolution

This enables efficient scanning of larger samples and reduces the need for stitch scanning.

🛡️ Integrated Radiation Protection

The NeoScan N60 includes built-in radiation shielding, allowing safe operation in standard laboratory environments.

📊 Technical Specifications (Overview)

General

• True 3D resolution (low contrast): 8 μm
• Pixel size at max. magnification: 3.8 μm
• scanning diameter: 19 mm / 36 mm
• scanning length: 60 mm
• physical object length: 140 mm
• Dimensions: 800 (W) × 310 (D) × 375 (H) mm
• Weight: 45 kg

X-Ray Source

• Reflective target emitter
• voltage: 65 kV
• power: 50 W
• Automatic filter changer: 4 positions

X-Ray Camera

• Cooled 15 MP CMOS sensor
• Field of view: 22 × 13 mm
• Pixel size: 4.25 μm
• Integrated radiation protection

🧪 Typical Applications

The NeoScan N60 is ideal for:

• Pharmaceutical tablets and solid dosage forms
• Dental samples (e.g. molar teeth)
• Geological specimens (carbonates, rocks)
• Polymers and composites
• Electronic components (USB devices, connectors)
• Food materials (chocolate, confectionery)
• Educational and research laboratories

✔ Why Choose the NeoScan N60?

• Accessible entry point to X-ray micro-CT technology
• Compact, lightweight, and truly desktop-ready
• High-quality imaging for everyday applications
• Minimal installation requirements
• USB-based operation with common computing devices
• Designed and built on NeoScan’s decades of micro-CT expertise

📌 For detailed system configuration, software features and application examples, please visit the official NeoScan N60 product page.
