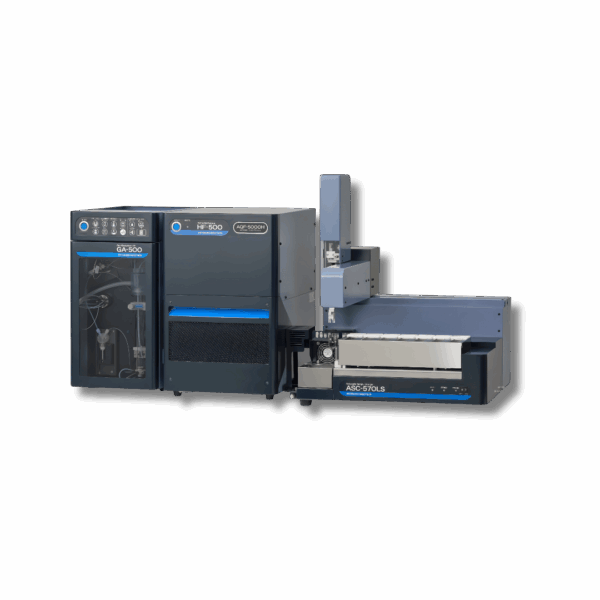

AQF-5000H

High-Speed Combustion System for Sulfur & Halogen Analysis (F, Cl, Br, I)

The Nittoseiko AQF-5000H is a third-generation automatic quick furnace system engineered specifically for combustion ion chromatography (C-IC). Designed for unmatched speed, sensitivity and sample-handling flexibility, it enables highly accurate analysis of sulfur and halogens (fluoride, chloride, bromide, iodide) in both solid and liquid samples.

With advanced combustion control, optimized low-blank components, enhanced liquid-handling architecture, and optional automation modules, the AQF-5000H is a powerful, future-proof solution for environmental, industrial, petrochemical, electronic materials and regulatory laboratories.

Key Features & Advantages

🖥️ User-Friendly, Modern Software

A newly redesigned software interface offers:

• Clear navigation and intuitive layout
• Simplified method setup
• Smooth control of combustion programs, sample introduction and absorption handling

🔬 Wide Concentration Range & Multi-Dilution Capability

A newly developed absorption tube supports:

• Fast switching between low- and high-concentration applications
• Multiple analyses at different dilution ratios from one single combustion
• Optional sample collector for storage and re-measurement

This greatly increases flexibility and reduces total runs per sample.

🔌 Plug-In Option Architecture

Optional units can be directly integrated into the absorption system:

• Streamlined design
• Faster installation
• Easier maintenance
• Modular upgrades without replacing the base unit

💧 Automated Switching of Absorption Solutions

Automatically switches between:

• Pure water absorption
• Absorption solutions containing additives

Ideal for laboratories running multiple halogen/sulfur methods on a single system.

🔥 Easy, Secure & Repeatable Combustion

The fully customizable combustion programs ensure:

• Reliable, soot-free combustion
• High recovery for all matrices
• Stable results across difficult sample types

Suitable for challenging industrial materials, plastics, oils, chemicals, environmental solids and more.

🎯 High Sensitivity, High Precision

All system components—combustion tube, tubing, furnace, liquid handling—are optimized for:

• Very low blank levels
• Exceptional repeatability
• Constant absorption volume
• Accurate results even at trace levels

🛠️ Easy Maintenance & Minimal Downtime

Designed for routine laboratory use, the AQF-5000H provides:

• Full access to all critical parts
• Easy replacement of combustion tube
• Reduced wear on consumables
• Long-term stable performance

⚡ Parallel Operation for High Throughput

The system allows:

• Parallel combustion/sample preparation & ion chromatography analysis
  → Maximizes productivity and significantly reduces turnaround time.

Ideal for high-volume environmental and industrial labs.

📊 Standard Specifications

Sample Handling

• Sample introduction: Automated boat control
• Sample types: Solid & liquid
• Amount:
  • Solid: 1–150 mg
  • Liquid: 5–100 µL

Combustion System

• Pyrolysis tube: High-purity quartz (ceramic optional)
• Furnace:
  • Max. 1,100 °C
  • Openable electric furnace
  • Two individually controlled heating zones

IC Injection

• Standard loop: 100 µL
• Optional loops: 5, 20, 50, 200, 500, 1000 µL

Materials

• Tubing: Fluoro-resin (ultra-low blank), PEEK

Gas Requirements

• Argon: 99.98%+, 0.3 ± 0.1 MPa
• Oxygen: 99.98%+, 0.3 ± 0.1 MPa

Power Supply

• AC 100–240 V, 50/60 Hz

Signal Output

• Contact signal to start ion chromatograph

🧩 Optional Modules

ASC-570LS Automatic Sample Changer (Solid + Liquid)

• Fully automated switching between solid and liquid measurement modes
• Supports high-throughput routine analysis

ABC-500 Automatic Boat Controller

• Automates boat insertion into the furnace
• Ensures consistent combustion timing and positioning

SP-C Syringe Pump

• Generates calibration solutions of multiple concentrations via automatic dilution

AC-500 Absorption Solution Collector

• Automates sample decomposition → gas absorption → solution isolation for IC injection

🌍 Typical Applications

The AQF-5000H is ideal for determining sulfur and halogens in:

• Environmental samples (soil, sludge, wastewater, sediments)
• Petrochemicals, fuels and lubricants
• Polymers, plastics, resins and electronic materials
• Biomass, food packaging and industrial products
• Regulatory compliance & research laboratories

✔ Why Choose the Nittoseiko AQF-5000H?

• Fast, accurate combustion ion chromatography sample preparation
• Reliable sulfur & halogen quantification for a wide concentration range
• Modular system with upgrade flexibility
• Low maintenance and long-term stability
• High throughput using parallel furnace/IC operation
• Optimized for trace-level precision with minimal blank values
