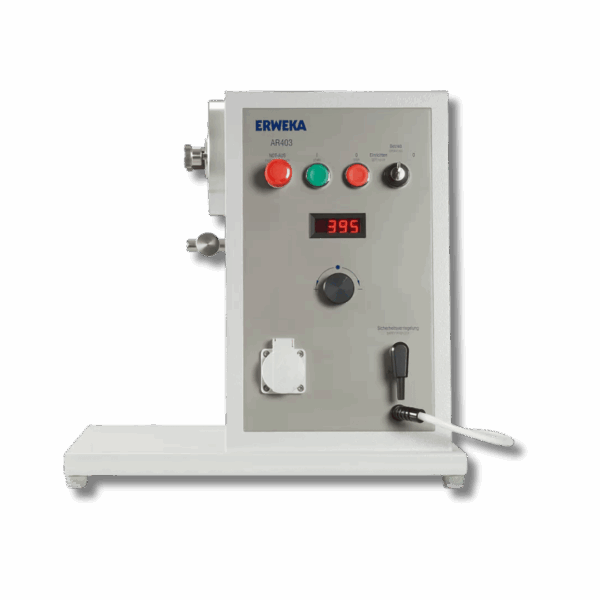

All-Purpose Equipment Drive Unit AR 403

The ERWEKA All-Purpose Equipment (APE) System is a modular, multi-functional solution designed for a wide range of R&D and small-scale production tasks across the pharmaceutical, chemical, cosmetic, and food industries. At the heart of the system is the AR 403 drive unit, a robust and high-precision motor base that powers an extensive selection of interchangeable attachments for mixing, milling, granulating, coating, blending, and more.

⚙️ AR 403 – High-Performance Universal Drive Unit

The AR 403 is equipped with a three-phase AC motor, delivering reliable torque and exceptional durability. Its maintenance-free worm gear provides up to 23 Nm output torque, ensuring stable operation even under heavy loads.

A digital speed control allows smooth adjustment between 20–400 rpm, while the built-in electronic regulation continuously balances nominal/actual values — maintaining constant speed regardless of load fluctuations.

The AR 403-S variant features an enhanced drive train tailored for particularly intensive applications.

Key Features

• Three-phase AC motor (740 W)
• Adjustable speed: 20–400 rpm, digitally controlled
• High torque output: 23 Nm
• Maintenance-free worm gear with 89% efficiency
• Stable speed through automatic load compensation
• Timer control (up to 9 h 59 min)
• Low noise level: ≤ 70 dB(A)

Options

• Foot switch
• IQ/OQ/PV documentation
• Wide range of attachable processing modules

🧪 Designed for R&D and Small-Scale Production

The ERWEKA All-Purpose System is ideal for:

• Formulation development
• Pilot-scale processing
• Tablet and powder preparation
• Ointments, pastes, creams
• Education and laboratory training environments

The modular concept allows one base unit to perform dozens of processing tasks simply by attaching the desired module — economical, space-saving and highly flexible.

🔄 Universal Gear (UG) – Adjustment & Speed Reduction

The Universal Gear (UG) attachment is essential when operating modules that require angle adjustment or speed reduction. It provides:

• Angle adjustment 0–80°
• Speed reduction 1:6

Used with modules such as:

• Coating pan (DKE/S)
• Polishing drum (PT)
• Cube mixer (KB 15/20/S)
• Pelletizer (GTE)
• Ball mill (KM 0)
• Double cone mixer (DKM)

🧩 Wide Range of Compatible Attachments

The AR 403 powers an extensive selection of processing tools, transforming it into a universal laboratory workstation:

Available Attachments Include:

• Ball mill
• Conical mill
• Cube mixer
• Double cone mixer
• Drum hoop mixer
• High-speed mixer
• Planetary stirrer
• V-mixer
• Wet granulator
• Double roll crusher
• Pelletizer
• Coating pan
• Polishing drum
• Filling and dosing system (FDS)

This flexibility makes the AR 403 one of the most versatile multi-purpose laboratory drive systems on the market.

📐 Technical Data – AR 403 Drive Unit

Weight: 30 kg

Dimensions (H×W×D): 440 × 450 × 400 mm

Voltage: 98–136 V / 50–60 Hz or 196–264 V / 50–60 Hz

Power consumption: 2100 W

Motor type: Three-phase AC motor (Class F insulation)

Speed: 20–400 rpm (±1 rpm tolerance)

Max torque: 23 Nm

Timer: 0–9 h 59 m (±1 s)

Operating temperature: +10 to +30 °C

Noise level: ≤70 dB(A)

Why Choose the ERWEKA All-Purpose System?

• One drive unit for dozens of applications
• Exceptional German engineering & reliability
• Cost-efficient solution for labs with diverse needs
• Easy operation & quick attachment changes
• Perfect for formulation development and small-scale batch production
• Long-term stability and reproducible results

📌 For technical documentation, available modules, and complete specifications, visit the official ERWEKA All-Purpose Equipment page.
